| Ascot |

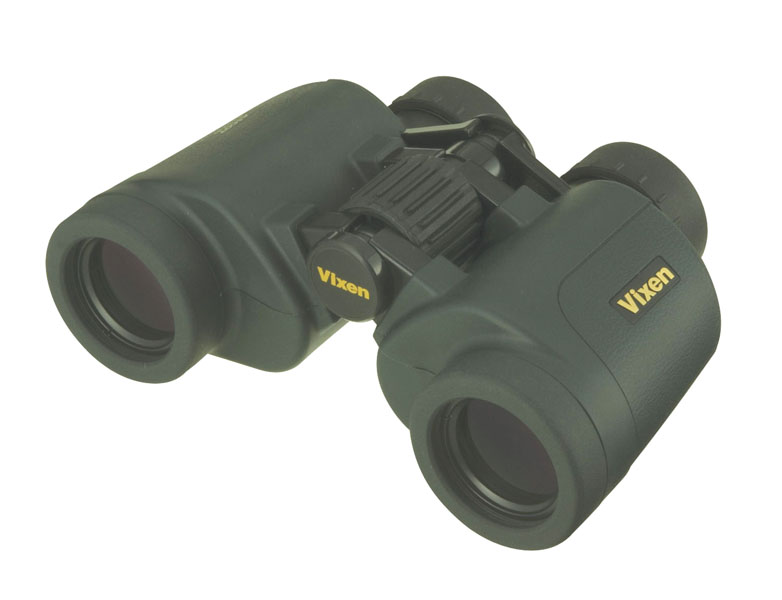

8x32 |

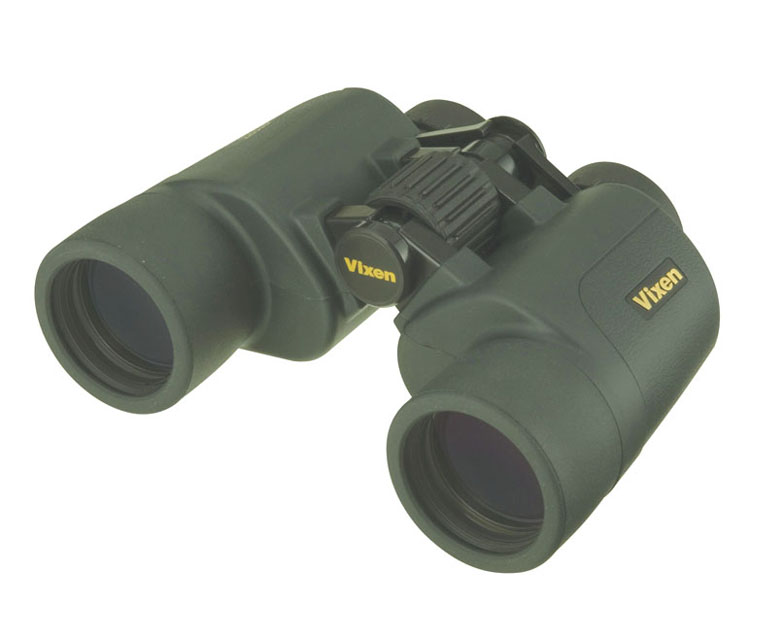

8x42 |

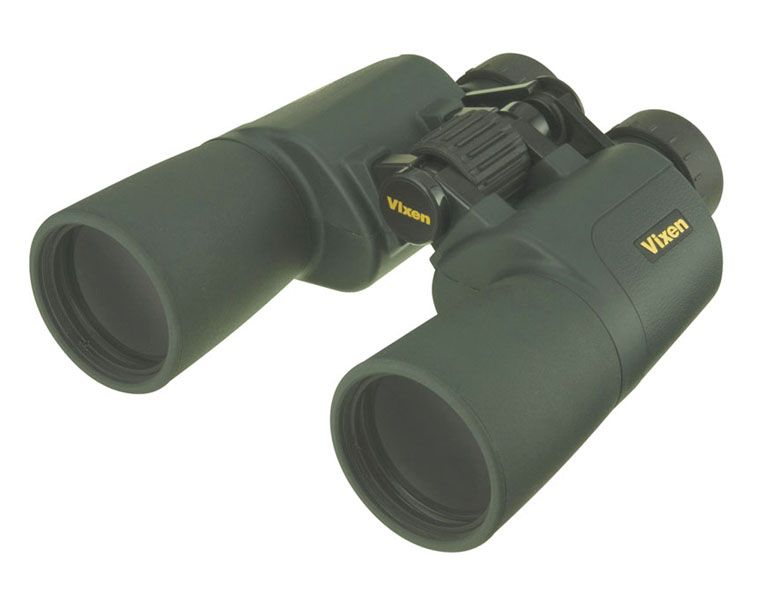

7x50 |

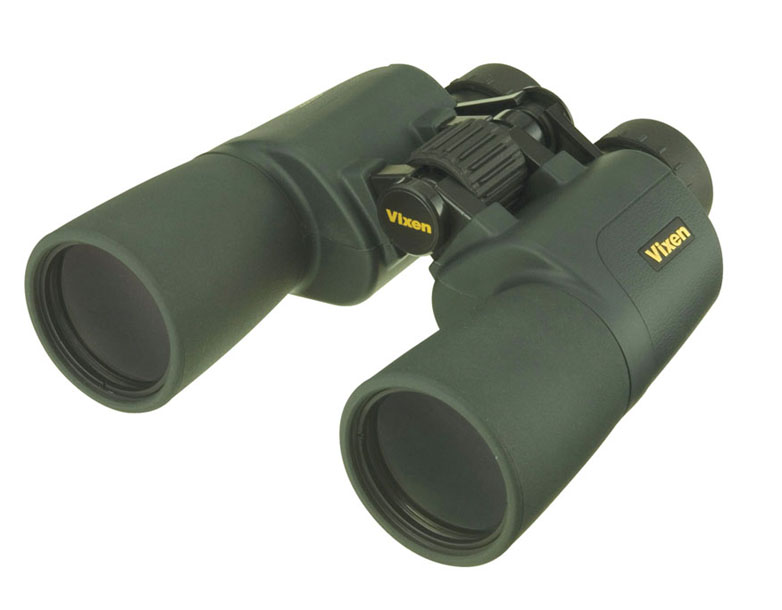

10x50 |

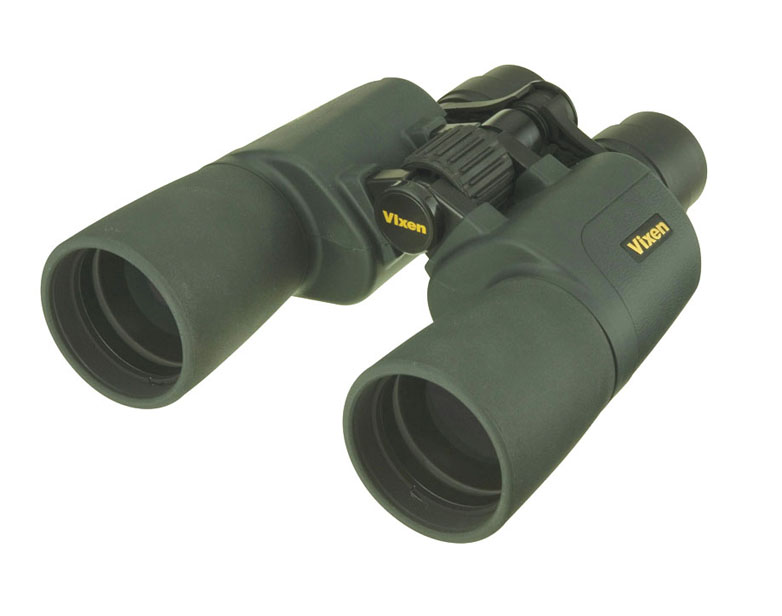

8-32x50 |
|
|
|
| Vergrößerung |
8x |
8x |
7x |
10x |
8x-32x |
|
|
|
| Optik-Ø mm |
32 |
42 |
50 |
50 |
50 |
|
|
|
| Prismen |
BaK4 |
BaK4 |
BaK4 |
BaK4 |
BaK4 |
|
|
|
| Vergütung |
MC |
MC |
MC |
MC |
MC |
|
|
|
| Objektives Sehfeld° |
8,2 |
8,2 |
6,4 |
6,5 |
4,2-2,0 |
|
|
|
| Subjektives Sehfeld° |
65,6 |
65,6 |
44,8 |
65,0 |
33,6-64,0 |
|
|
|
| Feld auf 1km in m |
143 |
143 |
112 |
113 |
73-35 |
|
|
|
| Austrittspupille mm |
4,0 |
5,3 |
7,1 |
5,0 |
6,3-1,6 |
|
|
|
| Geom. Lichtstärke |
16,0 |
28,1 |
50,4 |
25,0 |
39,7-2,6 |
|
|
|
| Pupillenabstand mm |
15 |
18 |
17 |
18 |
14-11 |
|
|
|
| Nahfokus m |
6,0 |
7,0 |
10,0 |
8,0 |
20,0 |
|
|
|
| Höhe x Breite mm |
113x177 |
133x181 |
170x188 |
170x188 |
194x188 |
|
|
|
| Gewicht g |
830 |
870 |
1015 |
1040 |
1025 |
|
|
|
| Stativanschluss |
Ja |
Ja |
Ja |
Ja |
Ja |
|
|
|
| Artikelnummer |
1560 |
1561 |
1562 |
1563 |
1565 |
|
|
|
| UVP € |
215,— |
225,— |
239,— |
249,— |
310,— |
|
|
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
| PHC=Phase Coated ·
FMC=mehrschichtvergütet · PFM=FMC alle Glas/Luft-Flächen
· FC=vollvergütet · MC=multicoated |
|
| |
